Fresh-air filter boxes
Fresh-air and exhaust filter cabinets for ventilation and make-up air: fresh-air cabinets, medium-efficiency exhaust boxes, activated-carbon adsorption boxes and multi-stage air filter boxes, sized by airflow and filter combination; connected to ductwork by the installer.
Description

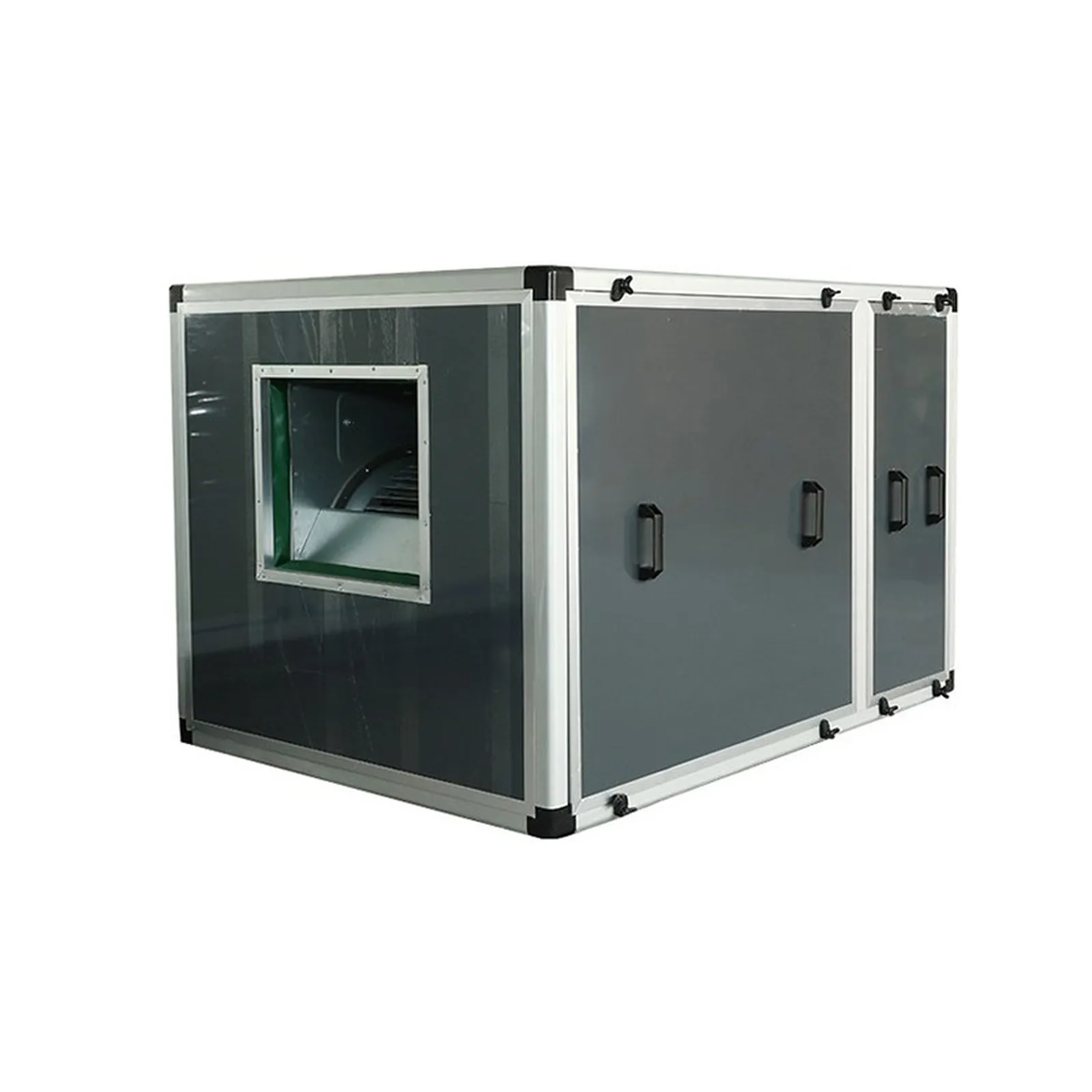

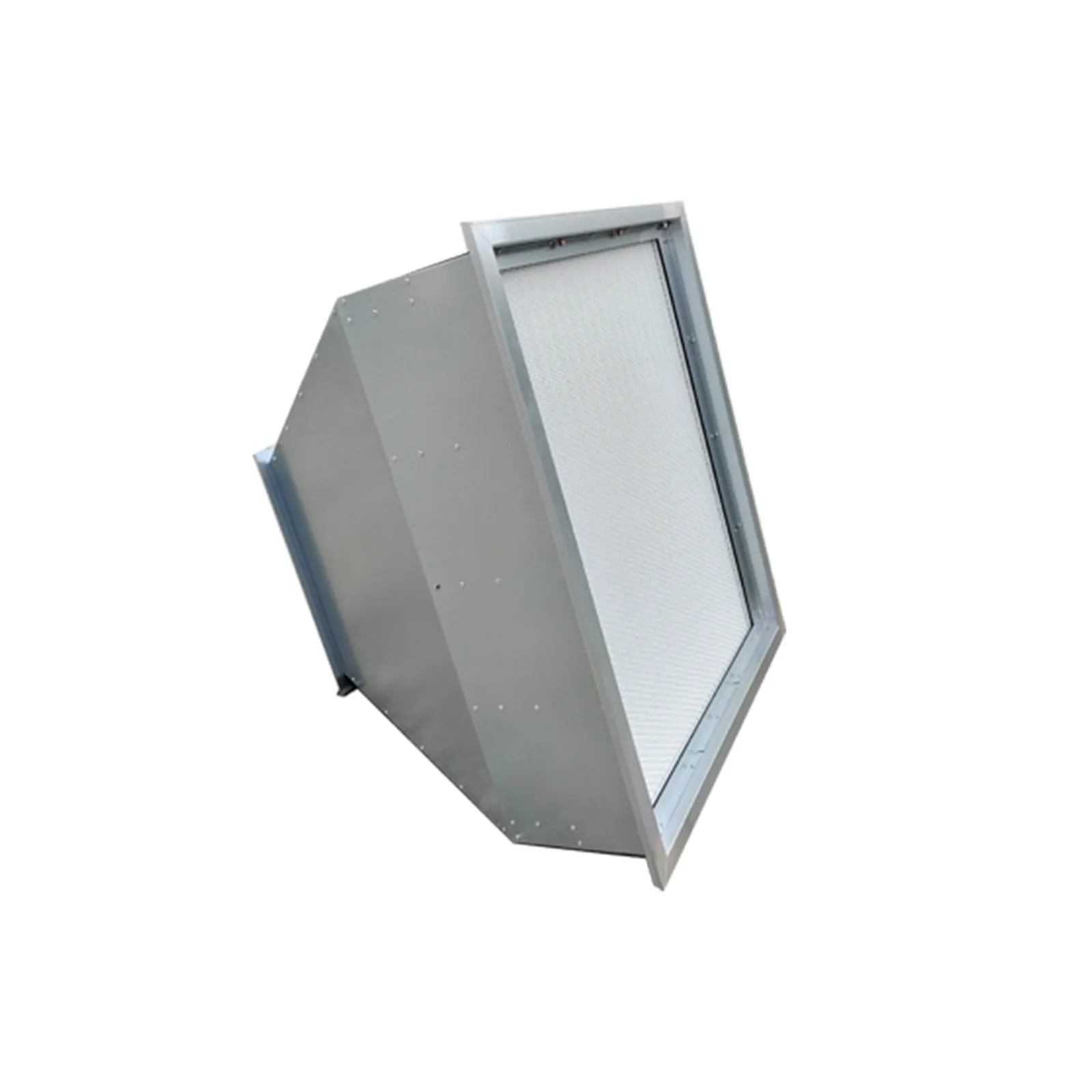

Fresh-air filter boxes are central air-handling cabinets for make-up and exhaust air. The fresh-air cabinet draws outdoor air through a filter bank and supplies it into the room or clean area, with fan and airflow configured to the project; the housing is powder-coated cold-rolled steel or stainless steel with external static pressure listed per model. The medium-efficiency exhaust box combines intake, filtration and exhaust for removing medium-size particles and bacteria from extract air. The activated-carbon box is a dry adsorption unit for odours and harmful gases, suited to low-concentration large-volume or intermittent exhaust. The air filter box is a deep-bed cabinet with primary, medium and HEPA stages, optionally with activated-carbon or chemical stages, for centralised air treatment. Filter modules are slide-out for maintenance, and different filter types (primary, medium, HEPA, activated carbon, ionizer, ozone generator) can be combined per the project.
Features
- Central cabinets for make-up air, exhaust air or centralised filtration, sized by airflow.
- Slide-out filter modules for maintenance and replacement.
- Filter stages combined per project: primary, medium, HEPA, activated carbon, ionizer or ozone generator.
- Housing in powder-coated cold-rolled steel or stainless steel.
- Housing surface acid-washed and powder-coated for corrosion resistance.
- Low-pressure-drop inlet duct design on the fresh-air cabinet reduces losses and noise.
Applications
- Hospital operating rooms and laboratories
- Biopharmaceutical plants
- Microelectronics and semiconductor facilities
- Food processing plants
- Commercial buildings needing filtered make-up air
- Exhaust air treatment for odours and harmful gases
Materials, performance and parameters
Catalogue data for this family.
Catalogue values describe the family. The quotation for a configuration is the binding document.
| Model | Box size (mm) | Airflow (m3/h) | External static pressure (Pa) | Motor power (W) |
|---|---|---|---|---|
| FA-A01 | 700x700x1050 | 1000 | 150 | 250 |
| FA-A02 | 800x800x1200 | 2000 | 300 | 550 |
| FA-A03 | 800x800x1350 | 3000 | 350 | 800 |
| FA-A04 | 1450x800x1500 | 5000 | 400 | 2200 |
Table covers the fresh-air cabinet. Housing in powder-coated cold-rolled steel or stainless steel; power supply 380 V/50 Hz or 220 V/50 Hz; noise under 67 dB at 1 m; filter stages in combinations per project. Source model prefix removed (third-party brand code).
Supply scope
What is supplied, and what stays with the buyer.
- Cabinet with fan set, filter stages and control, quoted as a fixed configuration per model and filter combination.
- Medium-efficiency exhaust, activated-carbon and multi-stage filter boxes are quoted by airflow and stage count.
- Duct connection, suspension and electrical hook-up on site stay with the buyer's installer.
Configurations
Fixed configurations that can be quoted.
A configuration code fixes the dimensions, electrical data, materials and documents. Quote requests that reference a code skip the specification round.
What we need to quote
Inputs that fix the configuration.
- 01
Required airflow and external static pressure
- 02
Filter stages and media type per stage
- 03
Power supply available on site (380 V/50 Hz or 220 V/50 Hz)
- 04
Duct connection sizes and installation space
- 05
Quantity and destination country or port
Documents
What ships with the quotation and the goods.
Documents are tied to configurations. Items marked as sent with the quotation are shared with qualified enquiries and are not published here.
- Specification sheetSpecification sheetBeing prepared
Packing and spare parts
Freight planning and first-line maintenance.
Packing
Packing data per unit is stated with each quoted configuration.
Spare parts
Spare parts are listed with each quoted configuration.
Request a quotation
Quote fresh-air filter boxes as a fixed configuration.
A quotable request names the product family, the key specifications or the fact that they are still open, the quantity, the destination and who will install on site.
