Gel-seal HEPA filters

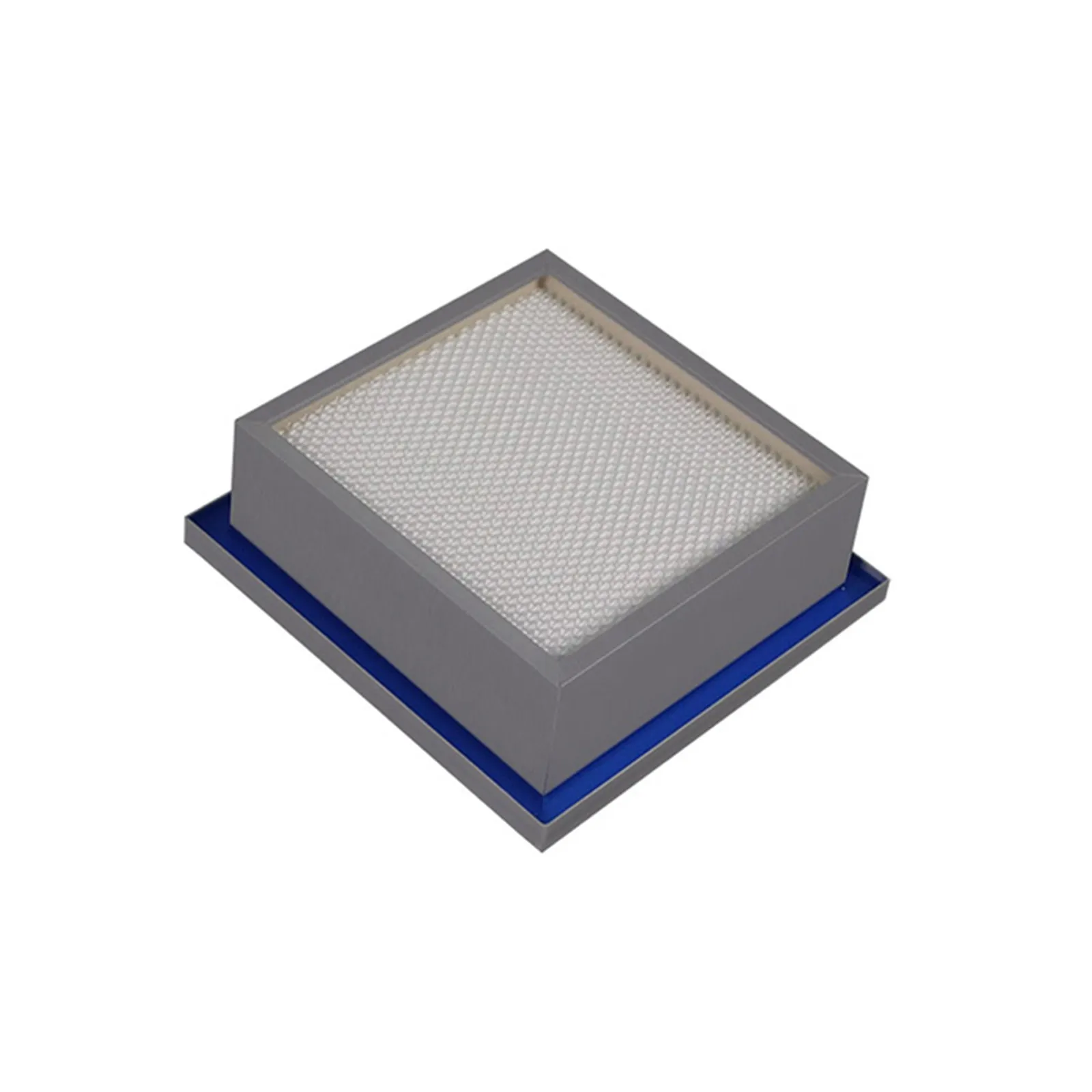

Mini-pleat HEPA panels with a gel potting groove around the flange, sealing against a knife-edge frame for terminal positions in industrial and biological cleanrooms.
Description
Gel-seal HEPA filters are mini-pleat HEPA panels whose flange is potted with a gel groove around the perimeter. The groove presses onto the knife edge of the matching frame; the gel wraps the blade and forms a continuous seal that tolerates uneven flanges better than flat gaskets. The pack uses ultra-fine glass fibre media with protection mesh on both faces and an aluminium profile frame. They remove particles of 0.3 µm and above (H14 in the source table) and are used as terminal filters in industrial and biological cleanrooms, normally paired with knife-edge frames.
Features
- Perimeter gel groove potted with dedicated gel-seal compound for knife-edge frames.
- Ultra-fine glass fibre media rated H14 to EN 1822 in the source table.
- Protection mesh on both faces of the pack.
- Aluminium profile frame; thin and light for ceiling grid installation.
Applications
- Terminal filtration in electronics and pharmaceutical cleanrooms
- Biological cleanrooms and laboratories
- Precision instrument, cosmetics and food production areas
- Ceiling grids with knife-edge gel-seal frames
Materials, performance and parameters
Catalogue data for this family.
Catalogue values describe the family. The quotation for a configuration is the binding document.
| Model | Nominal size W×H×D (mm) | Rated airflow / initial resistance (m³/h)/(Pa) | Face velocity (m/s) | Media area (m²) | Airflow / resistance 1 (m³/h)/(Pa) | Airflow / resistance 2 (m³/h)/(Pa) | Recommended final resistance (Pa) | Efficiency EN 1822 |
|---|---|---|---|---|---|---|---|---|
| B69-001 | 636×636×69 | 1000/190 | 0.72 | 10.0 | 600/120 | 1200/230 | 400 | H14 |
| B69-002 | 636×1246×69 | 2000/190 | 0.71 | 19.7 | 1200/120 | 2400/230 | 400 | H14 |
| B69-003 | 390×390×90 | 500/230 | 1.11 | 4.2 | 280/125 | 330/150 | 400 | H14 |
| B69-004 | 524×524×90 | 1000/205 | 1.11 | 9.6 | 630/125 | 760/150 | 400 | H14 |
| B69-005 | 670×670×90 | 1500/190 | 1.10 | 15.2 | 1000/125 | 1200/150 | 400 | H14 |
| B69-006 | 660×965×90 | 2000/190 | 1.09 | 22.6 | 1500/125 | 1800/150 | 400 | H14 |
| B69-007 | 596×1196×90 | 2600/190 | 1.09 | 26.8 | 1800/125 | 2150/150 | 400 | H14 |
| B69-008 | 660×1220×90 | 3000/190 | 1.09 | 29.9 | 2000/125 | 2400/150 | 400 | H14 |
Transcribed from the source catalogue parameter table. Airflow/resistance pairs give the resistance at two operating points below and above the rated airflow. The gel groove is matched to the knife-edge frame dimensions before ordering.
Supply scope
What is supplied, and what stays with the buyer.
- Gel-seal HEPA panels in the confirmed size, depth and efficiency class.
- Confirmation of the knife-edge frame dimensions and gel type used on site.
- Installation, gel replacement and in-situ leak testing stay with the buyer.
Configurations
Fixed configurations that can be quoted.
A configuration code fixes the dimensions, electrical data, materials and documents. Quote requests that reference a code skip the specification round.
What we need to quote
Inputs that fix the configuration.
- 01
Frame size W×H×D (mm) and the knife-edge frame it must seal against
- 02
Efficiency class (H13 or H14 to EN 1822) and rated airflow
- 03
Gel type installed in the frames on site
- 04
Quantity per size and destination country or port
Documents
What ships with the quotation and the goods.
Documents are tied to configurations. Items marked as sent with the quotation are shared with qualified enquiries and are not published here.
- Specification sheetSpecification sheetBeing prepared
Packing and spare parts
Freight planning and first-line maintenance.
Packing
Packing data per unit is stated with each quoted configuration.
Spare parts
Spare parts are listed with each quoted configuration.
